Overview

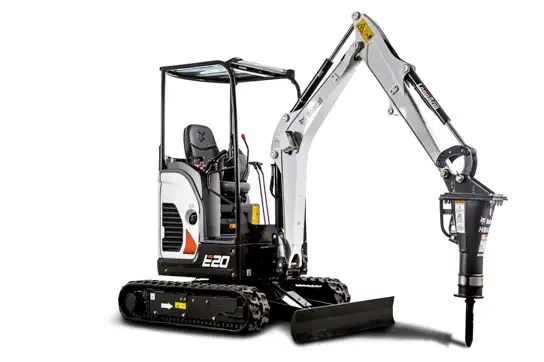

The Bobcat E20 is a compact and versatile 2-ton class mini excavator, designed for excellent maneuverability in tight spaces. With a zero tail swing (ZTS) design, the E20 can operate close to walls and obstacles without the risk of damage. It features an expandable undercarriage and a powerful 13.9 hp (10.4 kW) engine, making it an efficient choice for various excavation tasks.

Technical Specifications

• Operating Weight: 4,306 lbs (1,953 kg)
• Engine: Doosan (Tier 4, Diesel)
• Power Output: 13.9 hp (10.4 kW)
• Maximum Dig Depth: 8.5 ft (2.6 m)
• Maximum Reach: 14.0 ft (4.27 m)
• Bucket Breakout Force: 4,684 lbf (20.8 kN)
• Track Width (Retracted/Expanded): 39 in (99 cm) / 54 in (136 cm)
• Travel Speed: Low: 1.4 mph (2.2 km/h), High: 2.5 mph (4.0 km/h)
• Hydraulic Flow: 7.9 gpm (30 L/min)

Key Advantages

✅ Zero Tail Swing (ZTS): The rear of the excavator does not extend beyond the tracks, allowing safer operation in tight areas.

✅ Expandable Undercarriage: The track width can be adjusted from 39 in (99 cm) to 54 in (136 cm) for better stability when needed.

✅ Powerful Hydraulics: With a 4,684 lbf (20.8 kN) breakout force, the E20 delivers strong digging performance for its size.

✅ Comfortable Cab Design: The operator station features ergonomic controls, adjustable seat, and excellent visibility.

✅ Easy Transport: Due to its compact size and lightweight (4,306 lbs / 1,953 kg), the E20 can be transported easily on a trailer.

✅ Versatile Attachments: Compatible with various Bobcat attachments like augers, trenchers, and hydraulic breakers.

Disadvantages

🔴 Limited Digging Depth: With a maximum dig depth of 8.5 ft (2.6 m), it may not be suitable for deeper excavation projects.

🔴 Lower Engine Power: The 13.9 hp (10.4 kW) diesel engine is efficient but may struggle with heavy-duty tasks compared to larger models.

🔴 Narrow Tracks When Retracted: While the adjustable track width improves stability, in the narrowest setting (39 in / 99 cm), it can be less stable on uneven terrain.

🔴 No Enclosed Cab Option: Unlike some competitors, the E20 does not offer a fully enclosed cab with air conditioning, limiting comfort in extreme weather conditions.

Best Use Cases

• Urban construction & landscaping
• Utility trenching
• Indoor demolition (when equipped with appropriate attachments)
• Fencing and small excavation jobs

Price and Competitors

The Bobcat E20 is priced in the range of $30,000 – $40,000 USD, depending on configuration and attachments.

Top Competitors:

• Caterpillar 301.8 – Similar size but slightly more engine power.
• Kubota KX018-4 – Compact, fuel-efficient, and reliable.
• Yanmar ViO17 – Offers excellent stability and maneuverability.

Final Thoughts

The Bobcat E20 is an excellent compact excavator with strong performance, great maneuverability, and a user-friendly design. Its zero tail swing, expandable undercarriage, and versatile hydraulic system make it a great choice for small to medium-sized jobs. However, for larger digging projects, a bigger excavator might be required.
