Overview

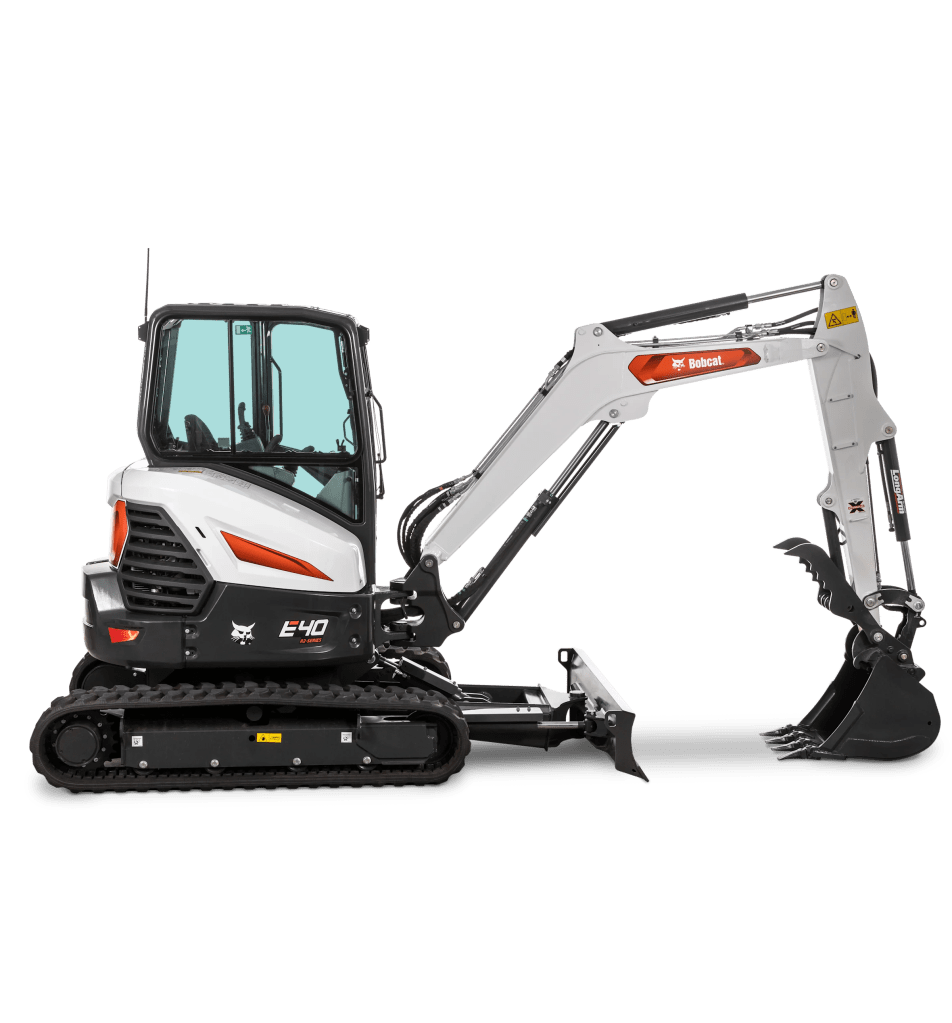

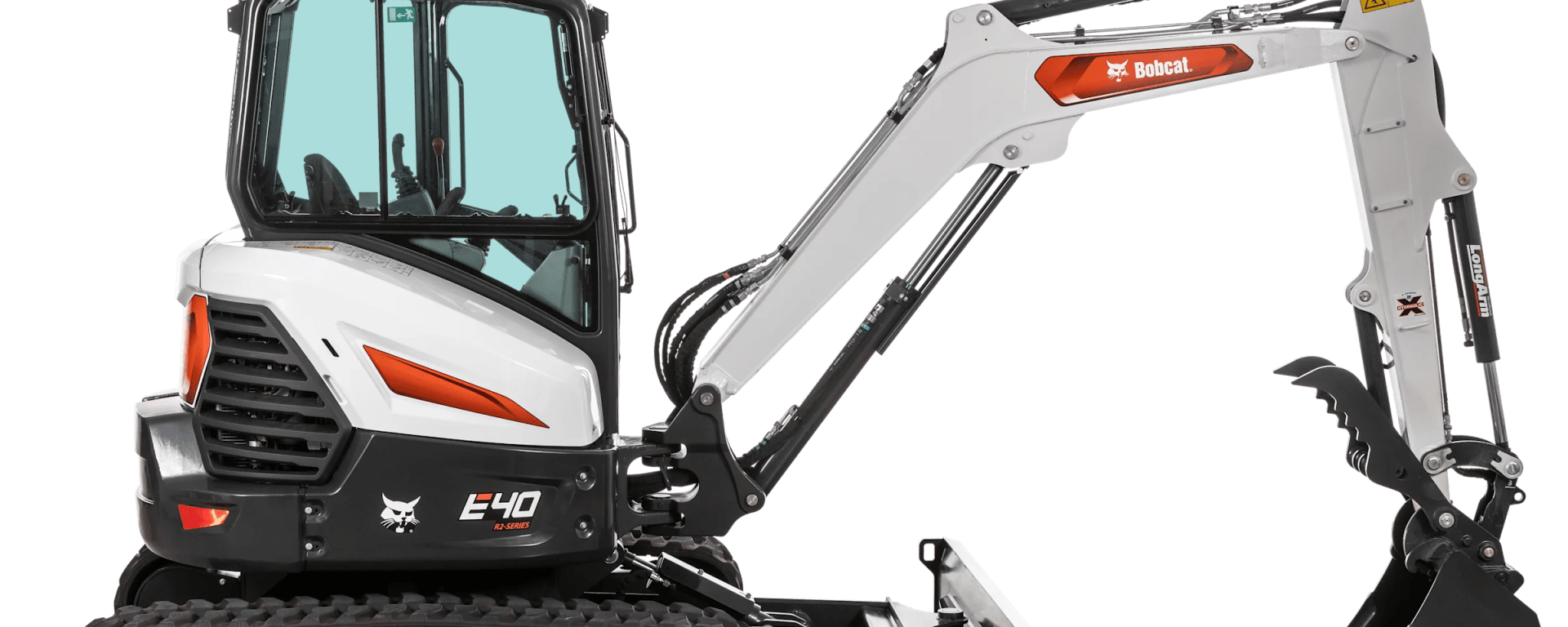

The Bobcat E40 is a 4.16-ton class compact excavator designed for versatility and efficiency in various applications. Its minimal tail swing design enhances maneuverability in confined spaces, making it ideal for urban construction and landscaping projects.

Technical Specifications

• Operating Weight: 9,180 lbs (4,164 kg)
• Engine Power: 40 hp (29.8 kW)
• Maximum Dig Depth: 130.4 in (10.87 ft / 3.31 m)
• Maximum Reach at Ground Level: 215.2 in (17.93 ft / 5.47 m)
• Bucket Digging Force: 7,284 lbf (32.4 kN)
• Arm Digging Force: 4,074 lbf (18.1 kN)
• Width: 72.8 in (1.85 m)
• Tail Swing Type: Minimal
• Fuel Tank Capacity: 13.7 gal (51.9 L)
• Auxiliary Hydraulic Flow: 16.9 gal/min (64 L/min)
• Auxiliary Pressure: 2,987 psi (20,594 kPa)

Advantages

✅ Minimal Tail Swing Design: The E40’s minimal tail swing enhances maneuverability, reducing the risk of damage when operating in tight spaces.

✅ Powerful Performance: Equipped with a 40 hp engine, the E40 delivers robust power suitable for various excavation tasks.

✅ Strong Digging Forces: With a bucket digging force of 7,284 lbf and an arm digging force of 4,074 lbf, the E40 efficiently handles challenging digging operations.

✅ Versatile Attachment Compatibility: The auxiliary hydraulic flow of 16.9 gal/min allows the E40 to support a wide range of attachments, enhancing its versatility on job sites.

Disadvantages

🔴 Operating Weight: At 9,180 lbs, the E40 may be heavier than some competitors in its class, potentially limiting its use in weight-sensitive applications.

🔴 Tail Swing: While minimal, the tail swing is not zero, which could pose challenges in extremely confined spaces compared to zero-tail-swing models.

Best Use Cases

• Urban Construction: Ideal for projects requiring maneuverability in confined urban environments.
• Landscaping: Suitable for tasks such as digging, grading, and material handling in landscaping projects.
• Utility Work: Well-suited for installing water, gas, and electrical lines, especially in areas with limited space.

Price & Competitors

Price: The Bobcat E40 starts at approximately $64,306 USD, with final pricing depending on configurations and optional features.

Top Competitors:

• Caterpillar 304E2 CR: Known for its compact radius design and powerful performance.
• Kubota KX040-4: Offers excellent lifting capacity and versatility.
• John Deere 50G: Provides a balance of power and fuel efficiency.

Final Thoughts

The Bobcat E40 compact excavator combines powerful performance with a minimal tail swing design, making it a versatile choice for various applications. Its strong digging forces and compatibility with multiple attachments enhance its utility on diverse job sites. However, operators should consider its operating weight and minimal tail swing when working in extremely confined spaces.
